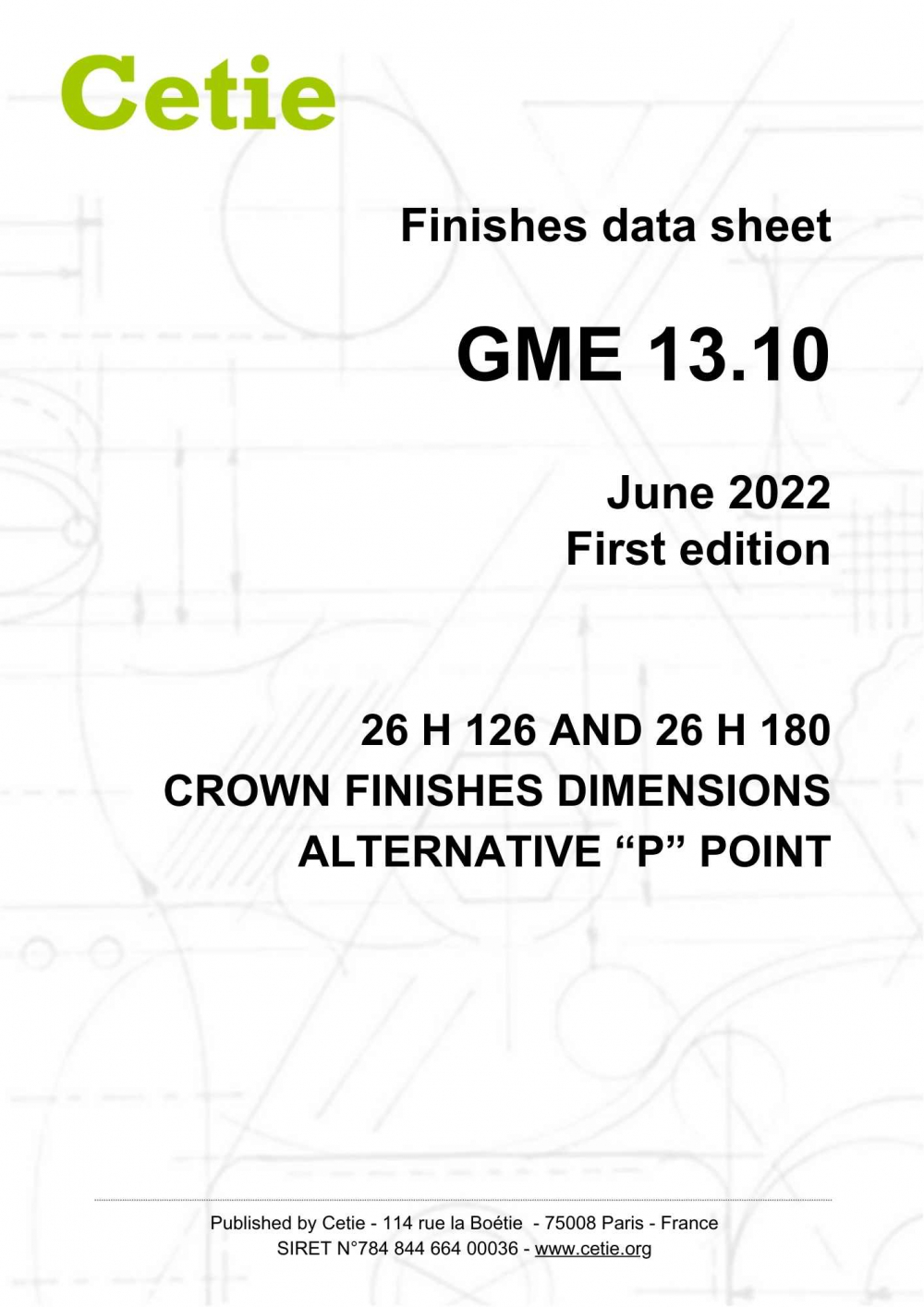

GME13.10
First edition
Published on: 13/06/2022
26H126 and 26H180 crown finishes - Dimensions - alternative P point
Scope of application
This data sheet provides specifications and dimensions of the crown finishes for glass bottles with an alternative "P" point.
- 26 H 126 mm shallow
- 26 H 180 mm tall
Table of contents
1. Scope
2. Definition
3. Dimensions
3.1. Shoulder dimensions
3.2. Finish profile
3.3. Crimping edge (“P” Point”)
3.4. Glass sealing surface (Detail X)
3.5. Dimensions of the entry bore
4. Related documents
4.1. Standards
2. Definition
3. Dimensions
3.1. Shoulder dimensions
3.2. Finish profile
3.3. Crimping edge (“P” Point”)
3.4. Glass sealing surface (Detail X)
3.5. Dimensions of the entry bore
4. Related documents
4.1. Standards
4.2. Cetie
5. Data sheet history
5. Data sheet history
History
First edition: 06/2022 - Definition of crown neck finishes with smoother crimping point (P point), in order to offer an alternative improving safety during opening. Starting from the ISO 12821 and ISO 12822, this new document combines the presentation of the tall and shallow finishes, with the following specificities:
First edition: 06/2022 - Definition of crown neck finishes with smoother crimping point (P point), in order to offer an alternative improving safety during opening. Starting from the ISO 12821 and ISO 12822, this new document combines the presentation of the tall and shallow finishes, with the following specificities:
- The Radius at P point is 1,2 mm instead of 0,5 on the ISO documents
- The entry bore diameter is restricted to the range 16,5 / 18 mm; diameters until 18,5 are not allowed, for tightness reasons.
Contributors
ARDAGH GLASS GERMANY, ARDAGH GLASS PACKAGING SOUTH AFRICA, BA GLASS PORTUGAL, BRITISH GLASS, BUNDESVERBAND GLASINDUSTRIE, CSVMF, ENCIRC GLASS,FEVE, GERRESHEIMER BELGIUM, GERRESHEIMER GERMANY, HEINZ GLAS, O-I MANUFACTURING FRANCE, O-I MANUFACTURING ITALY, O-I MANUFACTURING UK, POCHET DU COURVAL, SAVERGLASS, STOELZLE-OBERGLAS, VERALLIA FRANCE, VERALLIA GERMANY, VETROPACK, VIDRALA, WIEGAND-GLASHUTTENWERKE
Document under responsibility of working group:
Glass wg3
WG chair: Niall MC GRATH - ENCIRC GLASS
This permanent group is dedicated to the creation and revision of Cetie's "GME*" neck finishes data sheets, and also to the revision of equivalent neck finishes data sheets previously submitted to official standardisation (ISO and/or CEN), dedicated to the production of glass bottles and jars for the food and beverage sectors. These neck finishes data sheets concern the following applications: ROPP, aluminum screw caps, crown caps, twist-off caps, cork or synthetic stoppers, bar-top, or swing stoppers.
*Initiated by the glass industry in the 1960s, the acronym 'GME' stands for 'Glass Manufacturing Experimental'. The idea was that Cetie, as an unofficial standards body, would only publish 'experimental' data sheets, before submitting these to the official standards bodies. At the same time, in the USA, the acronym 'GME' was also used. As the original meaning was lost over time, this nomenclature for Cetie's glass finishes documents has been, later on, applied to the PET finish data sheets.
*Initiated by the glass industry in the 1960s, the acronym 'GME' stands for 'Glass Manufacturing Experimental'. The idea was that Cetie, as an unofficial standards body, would only publish 'experimental' data sheets, before submitting these to the official standards bodies. At the same time, in the USA, the acronym 'GME' was also used. As the original meaning was lost over time, this nomenclature for Cetie's glass finishes documents has been, later on, applied to the PET finish data sheets.
