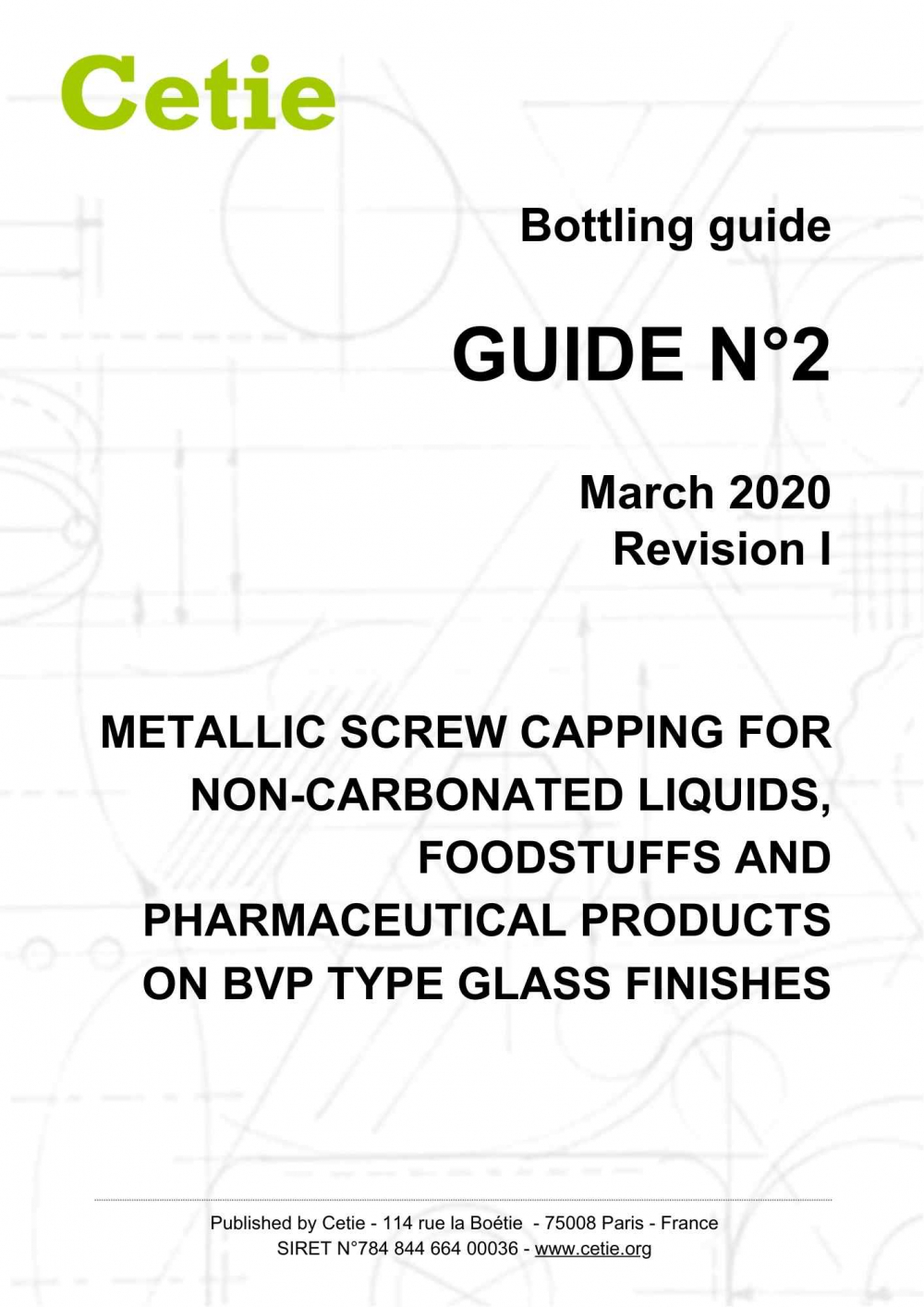

Guide No. 2
Revision I
Published on: 11/03/2020
Metallic screw capping for non-carbonated liquids, foodstuffs and pharmaceutical products on BVP type glass finishes
Scope of application
This guide gives information on good practices for bottling still products with aluminium screw caps (e.g. corresponding to specifications EC4.03 - ALUMINIUM SCREW CAPS FOR STILL LIQUIDS ON BVP GLASS FINISHES) on a BVP-type glass finish according to EN 15543 - GLASS PACKAGING - FINISHES FOR BOTTLES - SCREW THREAD FINISHES FOR BOTTLES FOR NON-CARBONATED LIQUIDS or equivalent.
The guide defines:
The guide defines:
- The functions of the closure and its limits ;
- The specifications of each of the components related to each other, to fulfil the global functions within determined limits.
