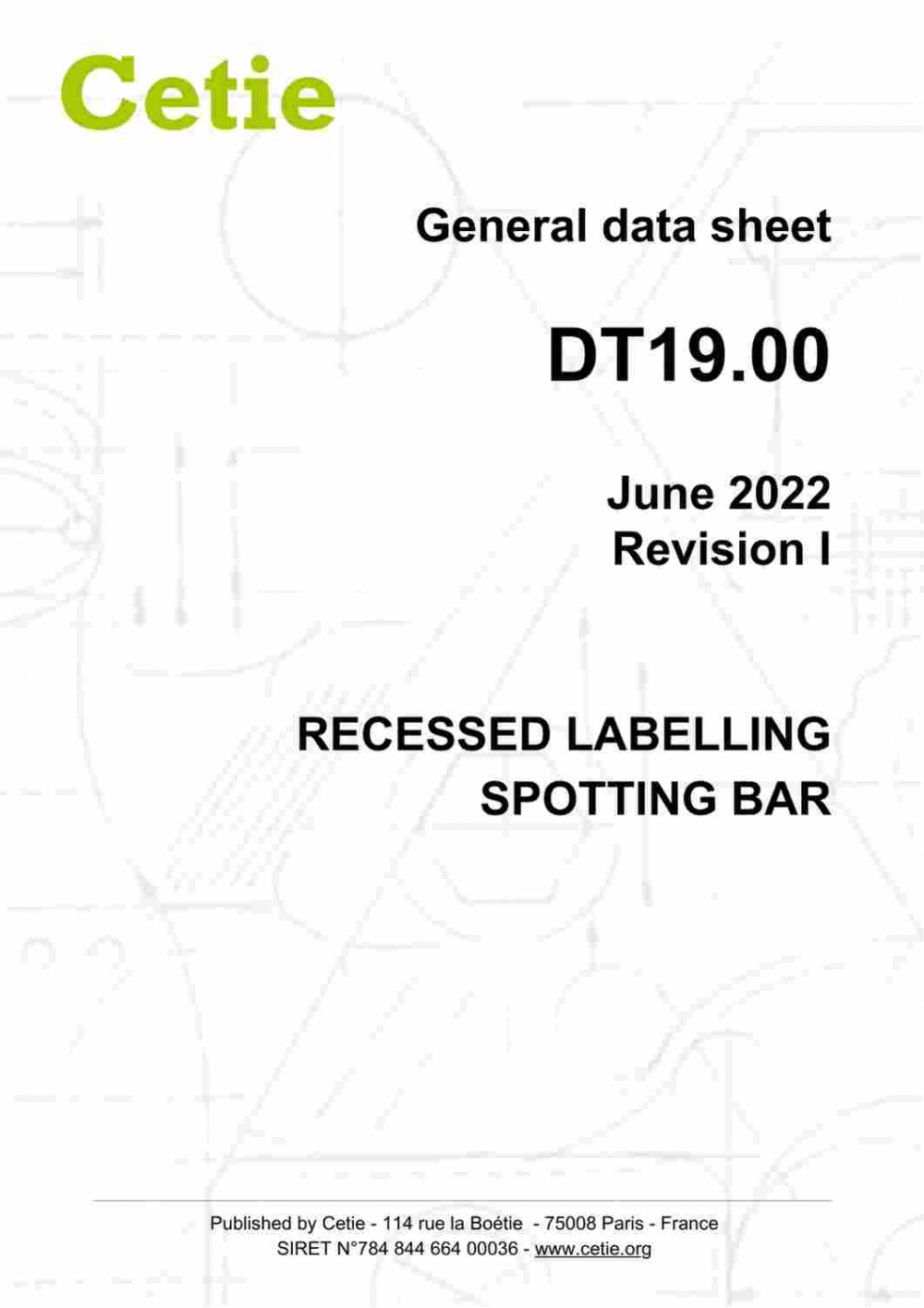

DT19.00
Revision I
Published on: 06/06/2022
Recessed labelling spotting bar
Scope of application
This document specifies the dimensions of a spotting bar used on mechanical device to stop the bottle in rotation and glue the label at a specific position.
Table of contents
1. Scope
2. Dimensions
3. Related documents
4. Data sheet history
2. Dimensions
3. Related documents
4. Data sheet history
History
First edition: 01/1998
Update: 07/2015
Revision I: 06/2022 - Creation of the scope, extension of a radius, and deletion of some tolerances on non-functional dimensions.
First edition: 01/1998
Update: 07/2015
Revision I: 06/2022 - Creation of the scope, extension of a radius, and deletion of some tolerances on non-functional dimensions.
Contributors
ARDAGH GLASS, BA GLASS PORTUGAL, BRITISH GLASS, BUNDESVERBAND GLASINDUSTRIE , CAN PACK, CSVMF, ENCIRC GLASS, GERRESHEIMER BELGIUM, HEINZ GLAS GERMANY, O-I MANUFACTURING FRANCE, O-I MANUFACTURING ITALY, O-I MANUFACTURING UK, SAVERGLASS FRANCE, STOELZLE-OBERGLAS, VERALLIA FRANCE, VERALLIA GERMANY, VETROPACK HOLDING, VIDRALA, WIEGAND-GLASHUTTENWERKE
Document under responsibility of working group:
Glass wg3
WG chair: Niall MC GRATH - ENCIRC GLASS
This permanent group is dedicated to the creation and revision of Cetie's "GME*" neck finishes data sheets, and also to the revision of equivalent neck finishes data sheets previously submitted to official standardisation (ISO and/or CEN), dedicated to the production of glass bottles and jars for the food and beverage sectors. These neck finishes data sheets concern the following applications: ROPP, aluminum screw caps, crown caps, twist-off caps, cork or synthetic stoppers, bar-top, or swing stoppers.
*Initiated by the glass industry in the 1960s, the acronym 'GME' stands for 'Glass Manufacturing Experimental'. The idea was that Cetie, as an unofficial standards body, would only publish 'experimental' data sheets, before submitting these to the official standards bodies. At the same time, in the USA, the acronym 'GME' was also used. As the original meaning was lost over time, this nomenclature for Cetie's glass finishes documents has been, later on, applied to the PET finish data sheets.
*Initiated by the glass industry in the 1960s, the acronym 'GME' stands for 'Glass Manufacturing Experimental'. The idea was that Cetie, as an unofficial standards body, would only publish 'experimental' data sheets, before submitting these to the official standards bodies. At the same time, in the USA, the acronym 'GME' was also used. As the original meaning was lost over time, this nomenclature for Cetie's glass finishes documents has been, later on, applied to the PET finish data sheets.
